3D/3T Series Multiple Pumps
Product
Ordering Example:
If you need double pump, the displacement of front and rear pumps are 2.31 and 1.70 c.i.r respectively with rotation of right-hand turning, the correct model number for PO is:3DB6BU2U13828R
※If the displacement is over range, or there is any special condition, please contact Honor.

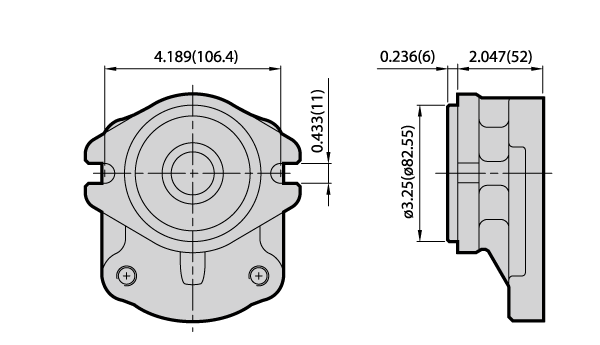

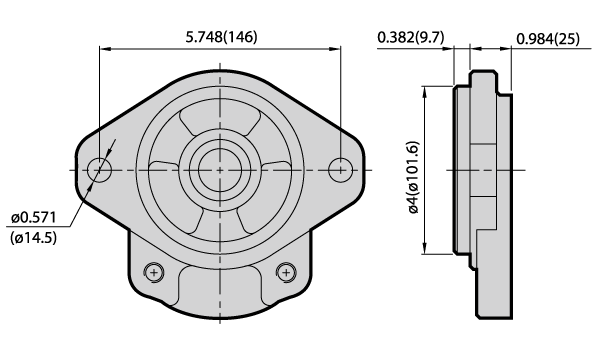

Code：A
Code：B
Code：C
Code：E

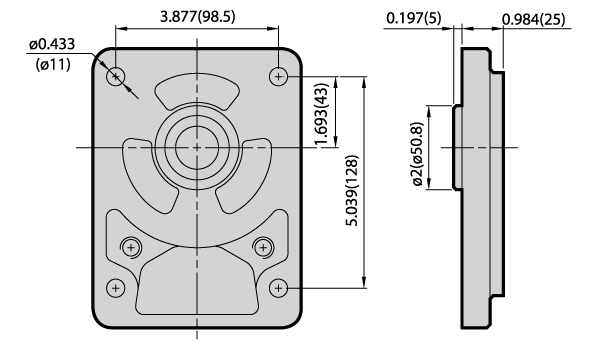

SUITABLE FORAFLANGE
Code：1
Code：2
Code：4
Code：5

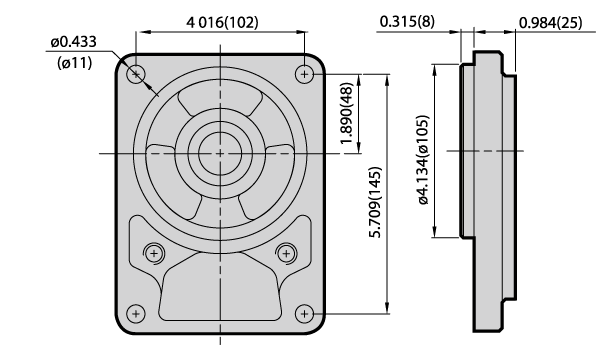

SUITABLE FORBCEFLANGE
Code：6
Code：7
Code：8
Code：9
Code：T1
Code：T2

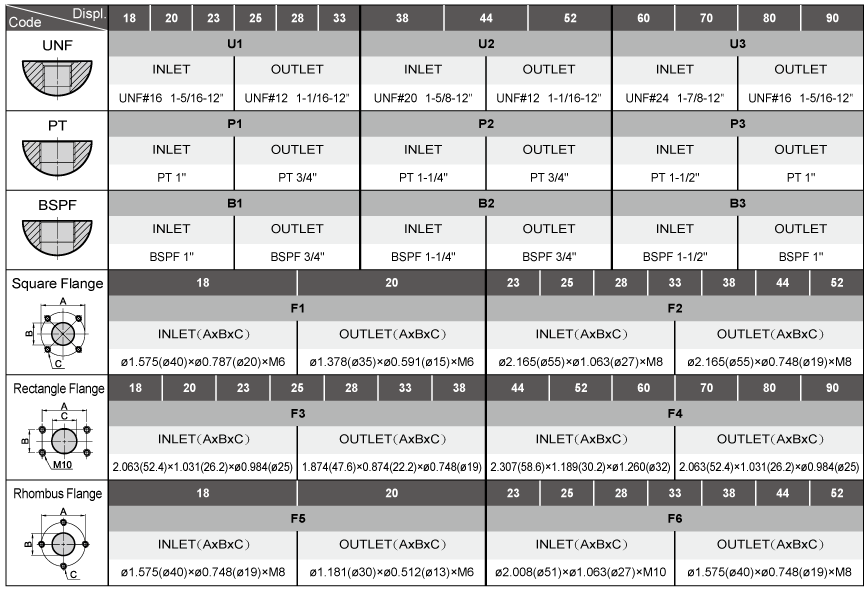

※Square and Rhombus flanges：For displ. 60~90, suggest that using ports P3, B3 and U3
※When choosing bi-directional pump/motor, the specs of oil inlet port and outlet one are identical.
※When choosing bi-directional pump/motor, the specs of oil inlet port and outlet one are identical.
